1. TYPE : SW-NP10-1200
2. PRESS Power : 10ton
3. STROKE Length : 20mm
4. DIE Height : 223mm
5. SLIDE Adjustment : 25mm
6. SKEW : OPTION [ 0~35mm, 0.01 precision ]
7. SKIP : OPTION [ 0.5mm~2.0mm adjustable ]
8. STROKE Open Length : 45mm
9. INDEX SLOT Tolerance : less than 0.01mm
10. INDEX Precision (Electric Resolution) :
Min. ¡Ê 1/3,600,000 Max. ¡Ê 1/360,000,000
11. VOLTAGE : 220V/22.5KW
12. MAIN SERVO MOTOR : 11KW
13. WEIGHT : 10, 7, 5ton
| TYPE |
10 ton |
7 ton |
5 ton |
| Range |
Max ¨ª1250 |
Max ¨ª1000 |
Max ¨ª750 |
| SPM max |
850 |
850 |
850 |

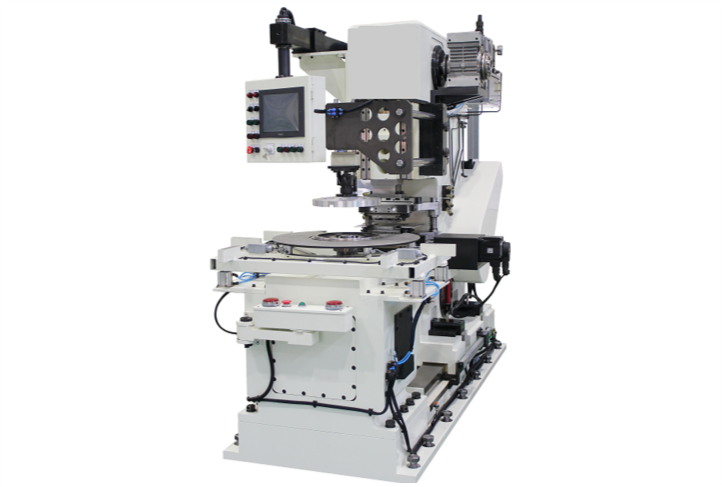

NOTCHING PRESS
